DNS Lasers: Precision, Reliability, Innovation.
Your trusted partner for advanced laser technology
solutions, proudly engineered in Gandhinagar, Gujarat, and delivered across India.

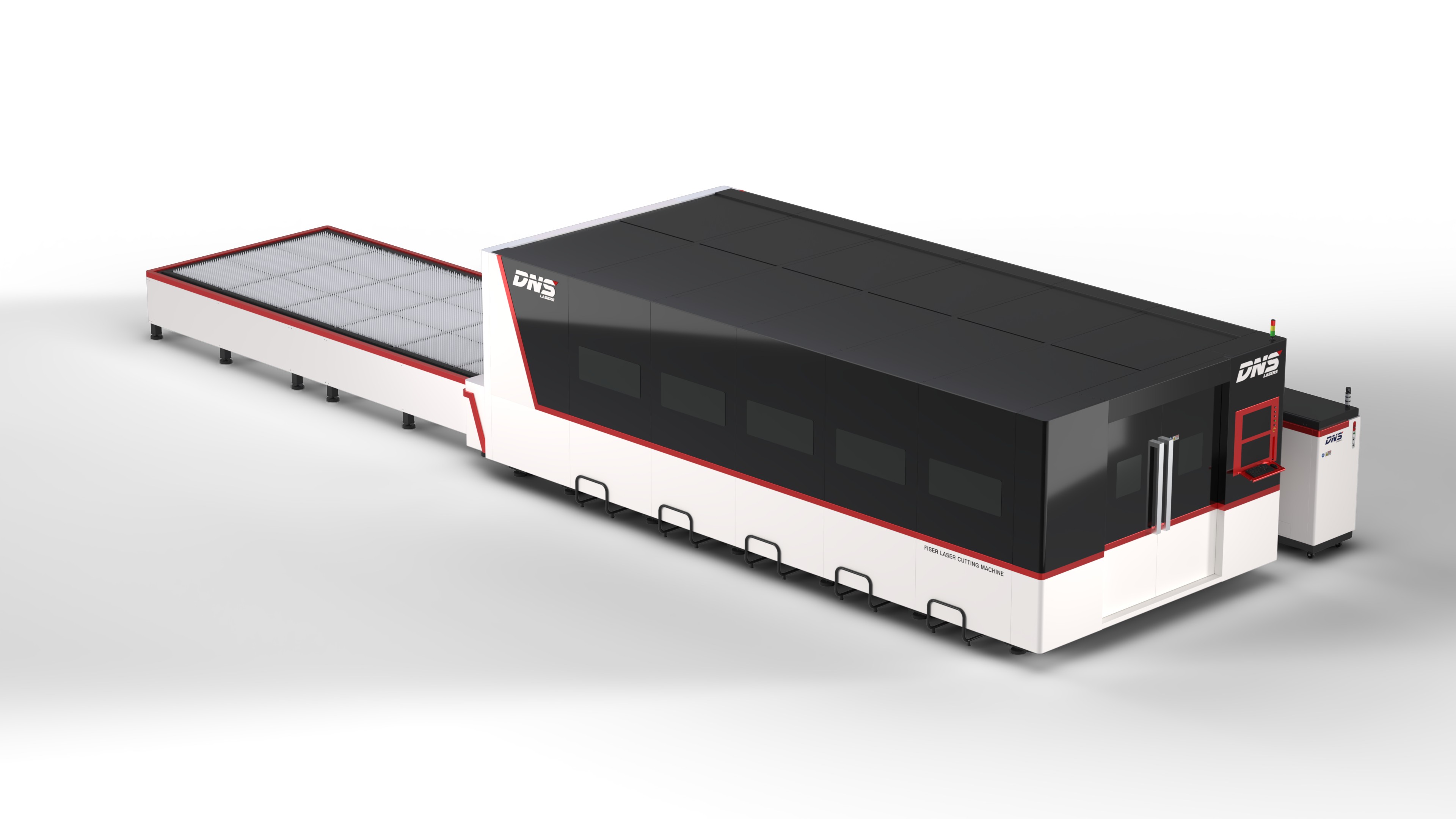

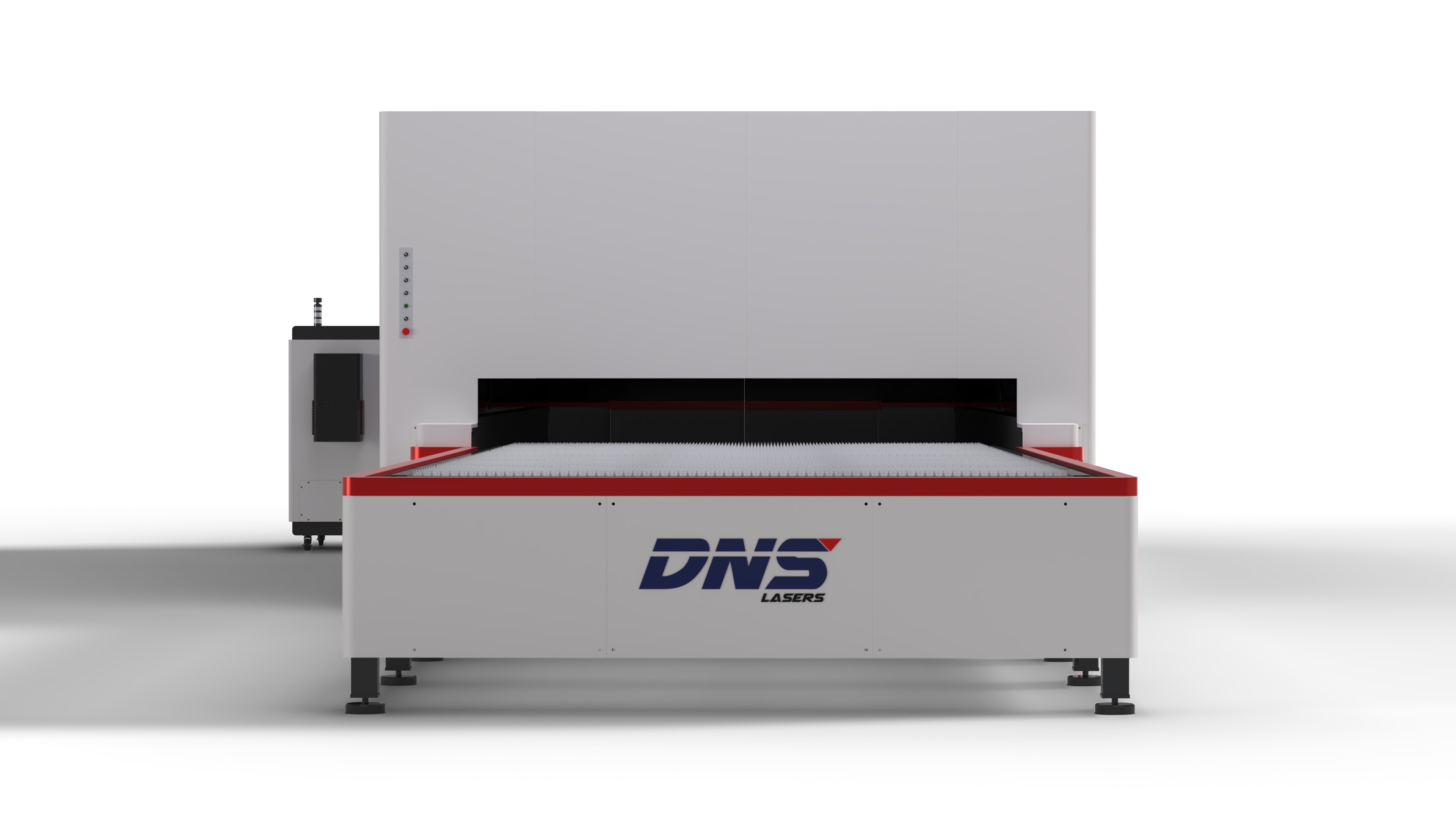

The Enclose Type CNC Fiber Laser Machine offers a safe, high-performance solution for industrial metal cutting, available in multiple power ratings and working sizes. Designed with a fully protective enclosure, it minimizes laser leakage, improves fume extraction, and creates a controlled work environment making it ideal for indoor and safety-conscious facilities. These machines deliver exceptional speed (max. 150 m/min) and dynamic motion (up to 2G acceleration), while maintaining cutting accuracy to ±0.05 mm. Powered by efficient fiber-laser sources and an Ether CAT-based CNC control system, they provide energy-efficient operation, real-time motion control, and consistent repeatability for both custom and high-volume production. With robust water cooling and industrial-grade external control panels, the enclosed models are low-maintenance and well-suited for automotive components, sheet metal fabrication, electrical enclosures, HVAC ductwork, signage, and other precision manufacturing needs.
| Specification | LC-3015S | LC-4020S | LC-6520S | LC-6525S |
|---|---|---|---|---|
| Laser Capacity | 1.5kW - 6kW | 1.5kW - 12kW | 1kW - 12kW | 1kW - 12kW |
| Outer Size (L X W X H) | 7900mm x 2500mm x 1900mm | 9900mm x 3200mm x 1900mm | 16000mm x 3300mm x 2200mm | 16000mm x 4100mm x 2200mm |
| Working Size (L X W) | 3000mm x 1500mm | 4000mm x 2000mm | 6500mm x 2000mm | 6500mm x 2500mm |
| Max Speed | 120 m/min | 120 m/min | 150 m/min | 150 m/min |
| Max Acceleration | 1.5G | 1.5G | 2G | 2G |
| Cutting Accuracy | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
| Control System | Ether-CAT based CNC | Ether-CAT based CNC | Ether-CAT based CNC | Ether-CAT based CNC |
| Cooling System | Water Cooling | Water Cooling | Water Cooling | Water Cooling |
| Machine Control Panel | External for industrial purpose | External for industrial purpose | External for industrial purpose | External for industrial purpose |
| Laser Power | MS (mm) | SS (mm) | Aluminium (mm) | Brass (mm) |
|---|---|---|---|---|
| 1.5 kW | 12 | 5 | 3 | 1 |
| 3 kW | 16 | 8 | 6 | 4 |
| 6 kW | 25 | 15 | 12 | 8 |
| 12 kW | 35 | 25 | 25 | 12 |
