Single Pallet Machines

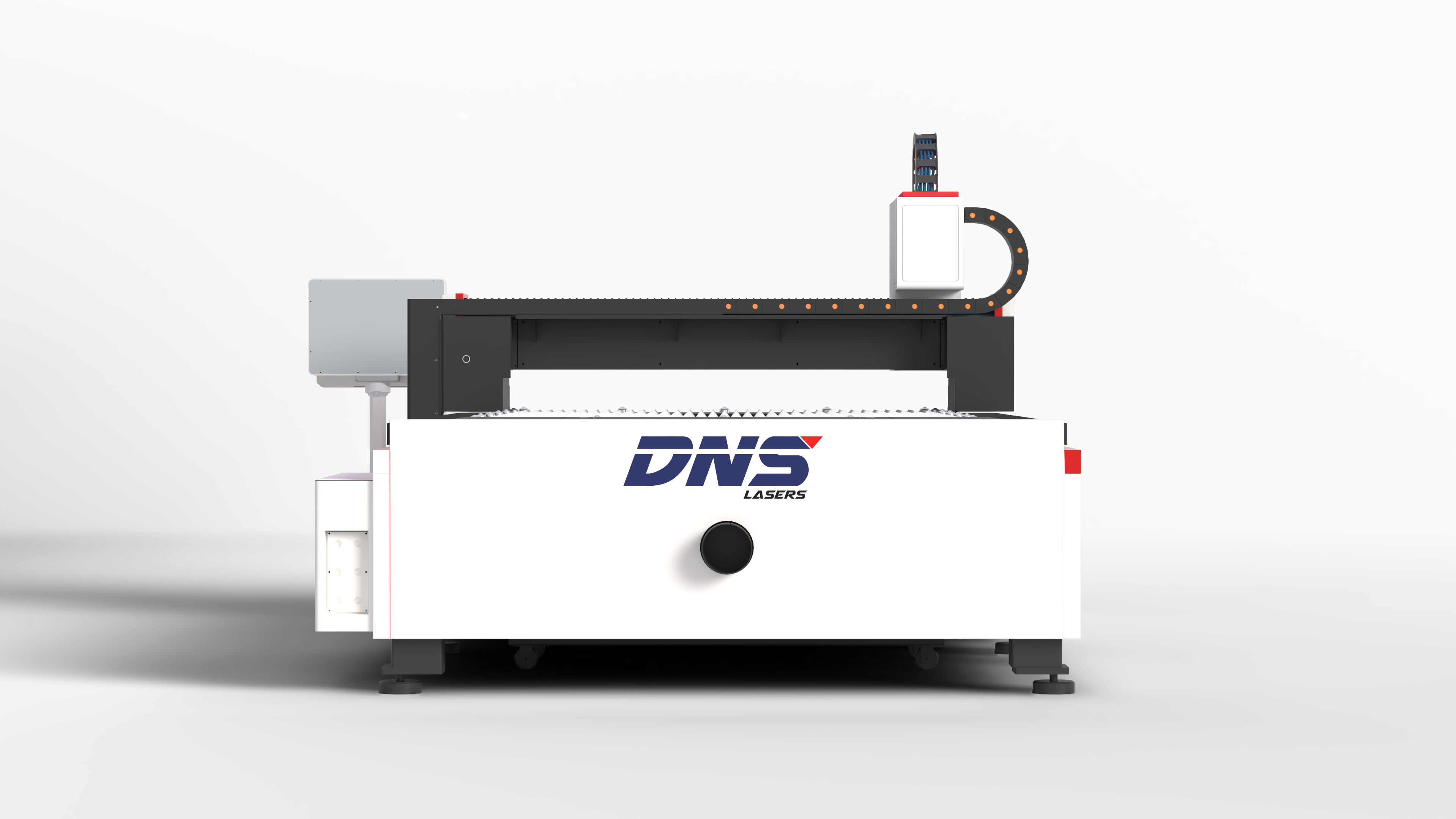

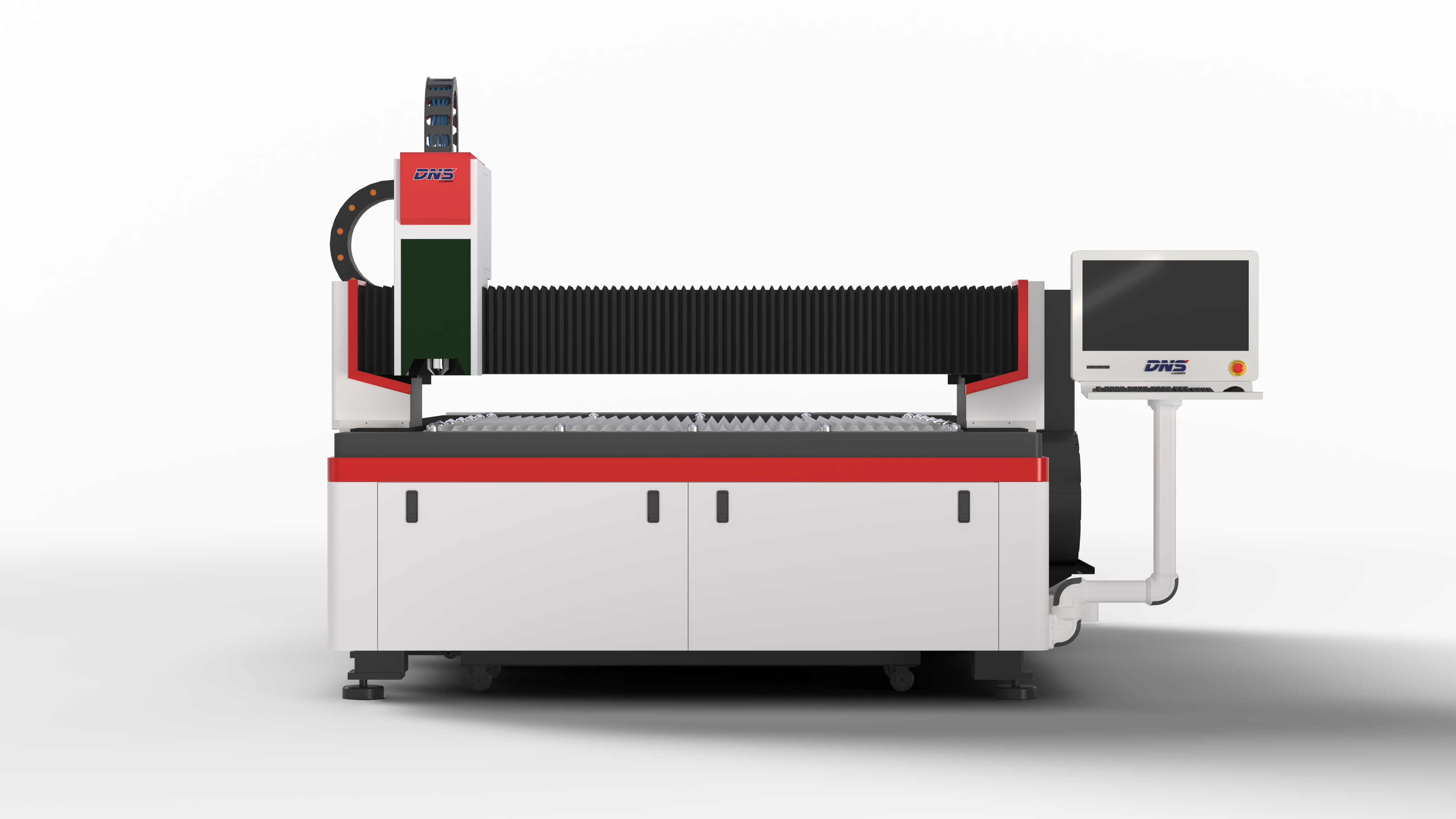

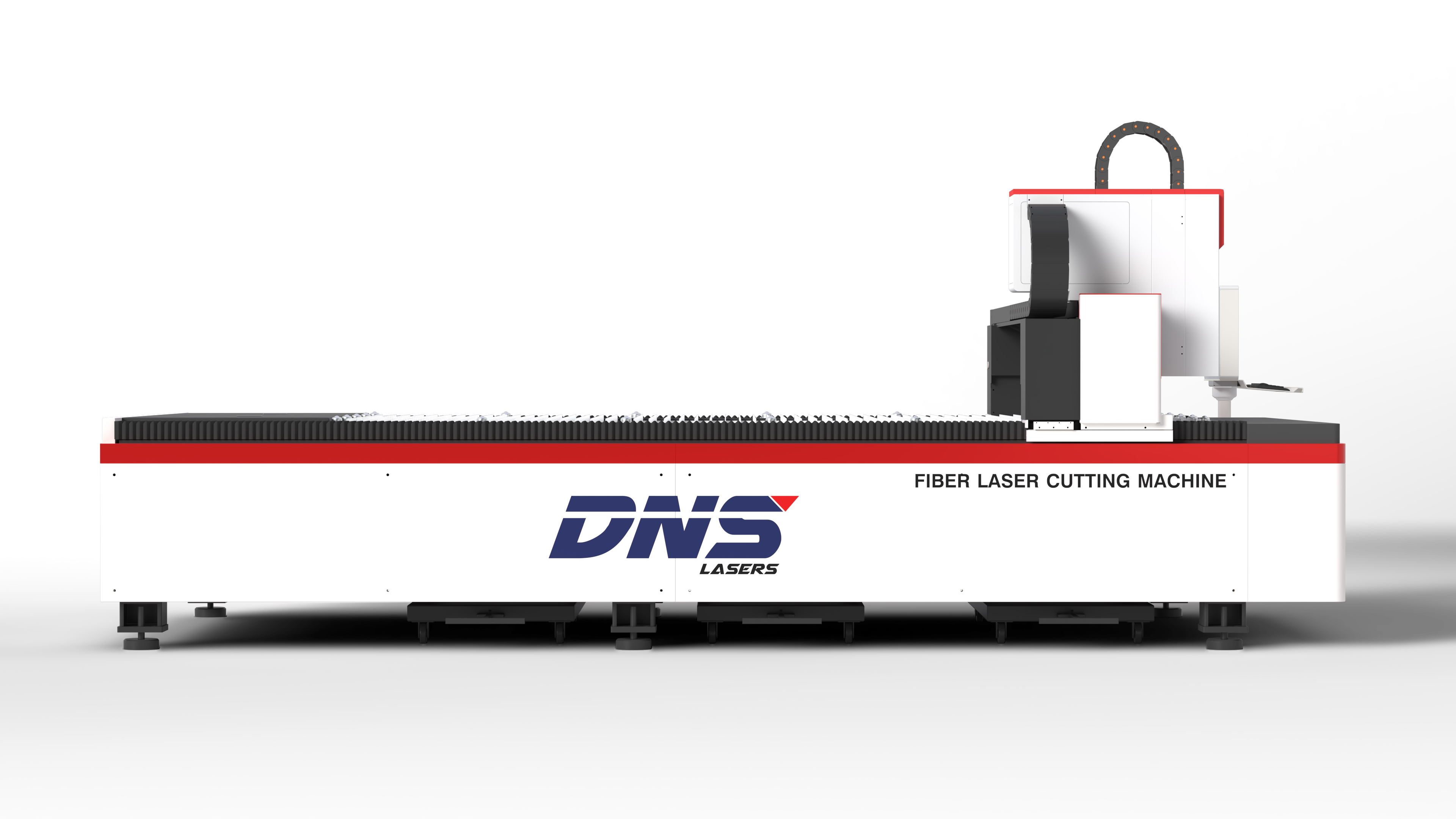

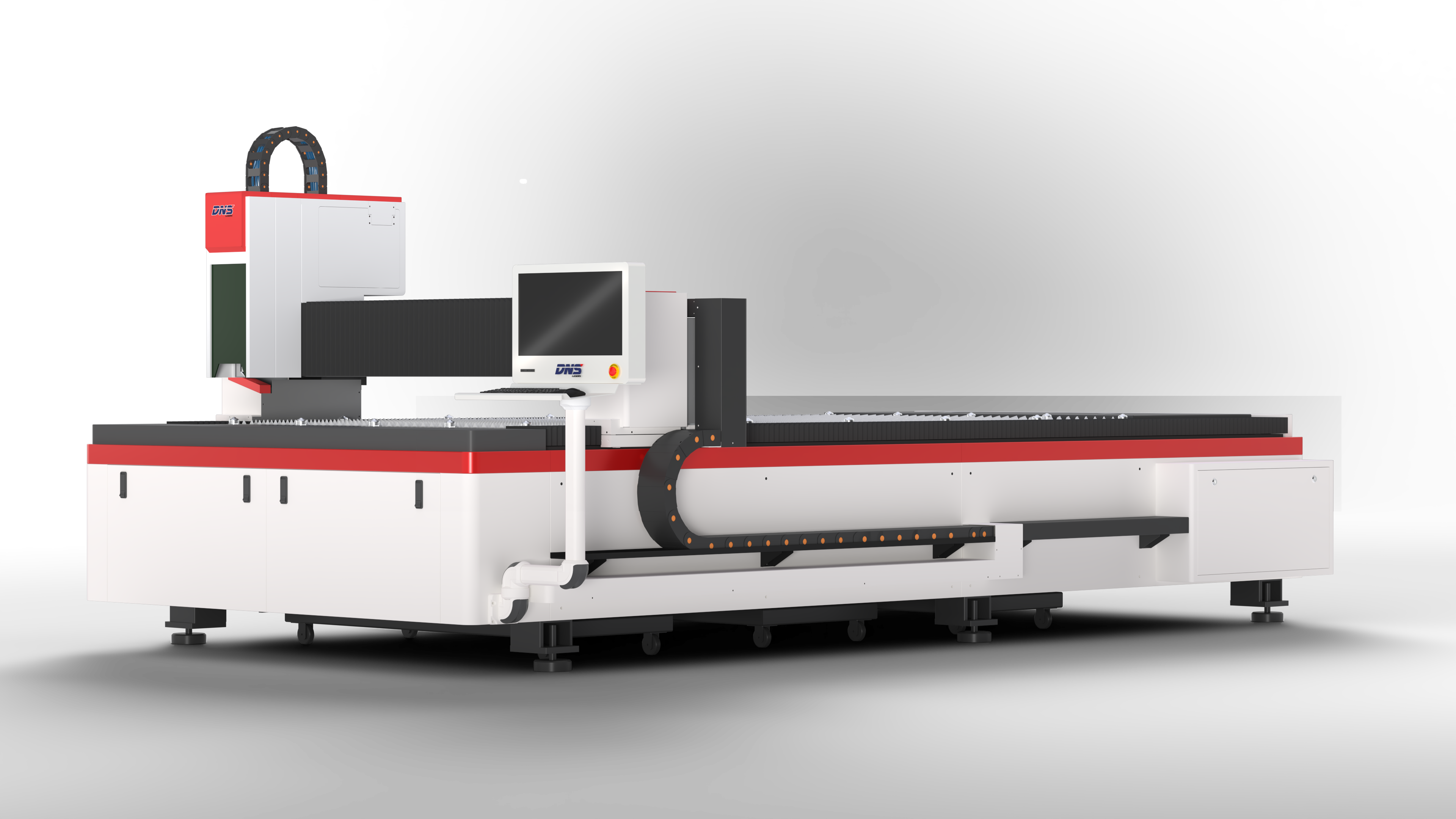

Single Pallet Fiber Laser Cutting Machine


The Single Pallet Fiber Laser Cutting Machine range, from 1kW to 20kW, offers unmatched precision, speed, and versatility for various industrial applications. With rapid speeds of up to 100m/min and 1.2G acceleration, and cutting speeds up to 30 meters per minute as per material these machines provide fast, efficient production for both small-scale custom jobs and high-volume manufacturing. Featuring energy-efficient fiber laser technology, they reduce operational costs while maintaining accuracy up to ±0.05mm. The EtherCAT-based control system ensures seamless operation, while the properly engineered design is specifically tailored for engineering and industrial purposes. With user-friendly CNC controls and low-maintenance, durable construction, these machines are ideal for industries like automotive, aerospace, metal fabrication, and signage production, delivering high-quality cutting across various material thicknesses.

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6



Product Specifications


Specification LC-3015S LC-4020S LC-6520S LC-6525S
Laser Capacity 1kW - 3kW 1kW - 6kW 1kW - 12kW 1kW - 12kW
Outer Size (L X W X H) 4500mm x 2500mm x 1900mm 5500mm x 3000mm x 1900mm 8100mm x 3000mm x 2200mm 8100mm x 3500mm x 2200mm
Working Size (L X W) 3000mm x 1500mm 4000mm x 2000mm 6500mm x 2000mm 6500mm x 2500mm
Max Speed 100 m/min 100 m/min 100 m/min 100 m/min
Max Acceleration 1.2G 1.2G 1.2G 1.2G
Cutting Accuracy ±0.05mm ±0.05mm ±0.05mm ±0.05mm
Control System Ether-CAT based CNC Ether-CAT based CNC Ether-CAT based CNC Ether-CAT based CNC
Cooling System Water Cooling Water Cooling Water Cooling Water Cooling
Machine Control Panel Inbuilt for compact size Inbuilt for compact size External for industrial purpose External for industrial purpose

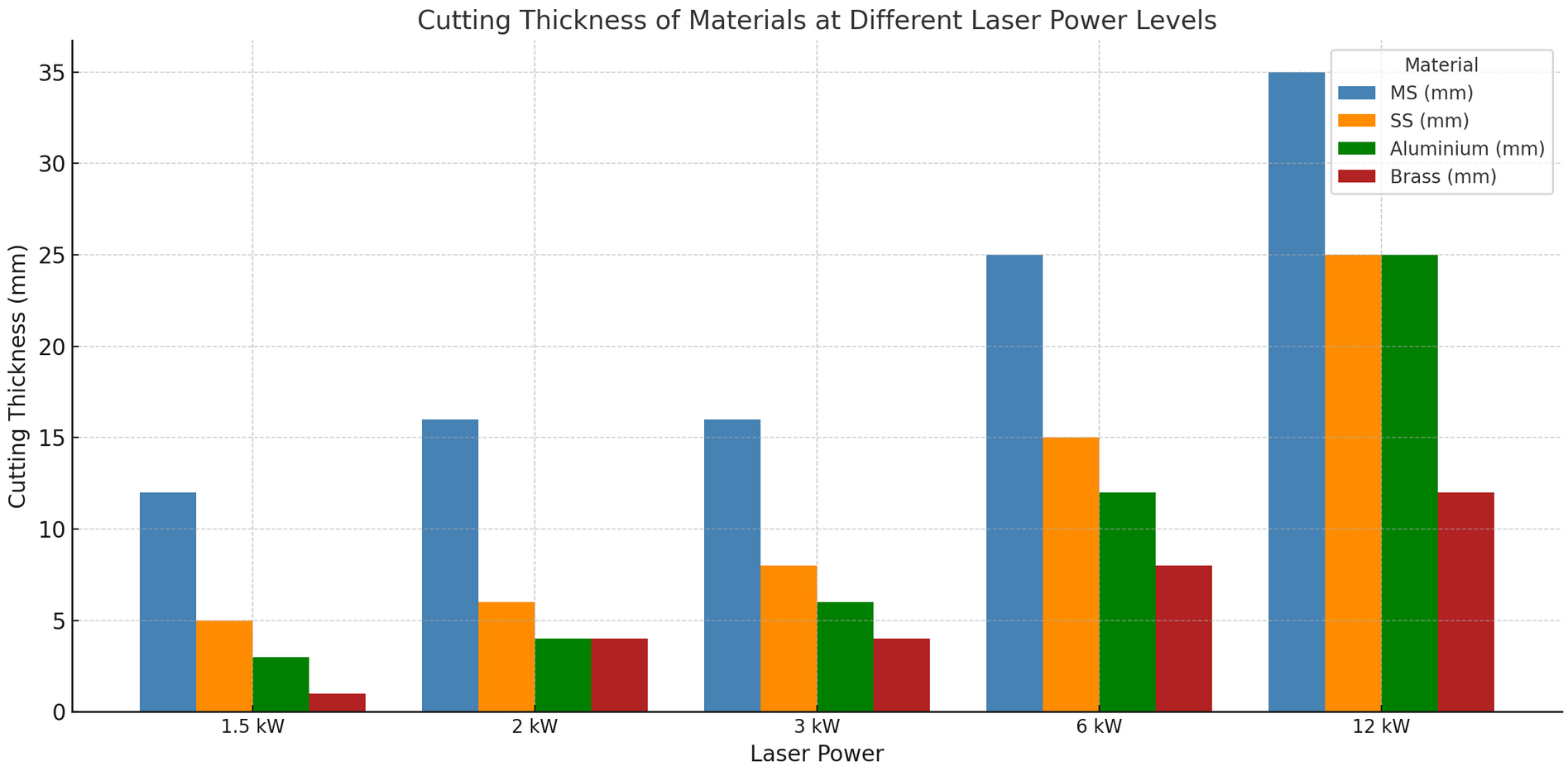

Laser Power MS (mm) SS (mm) Aluminium (mm) Brass (mm)
1.5 kW 12 5 3 1
3 kW 16 8 6 4
6 kW 25 15 12 8
12 kW 35 25 25 12
